橡胶制品,轮胎试验机系列

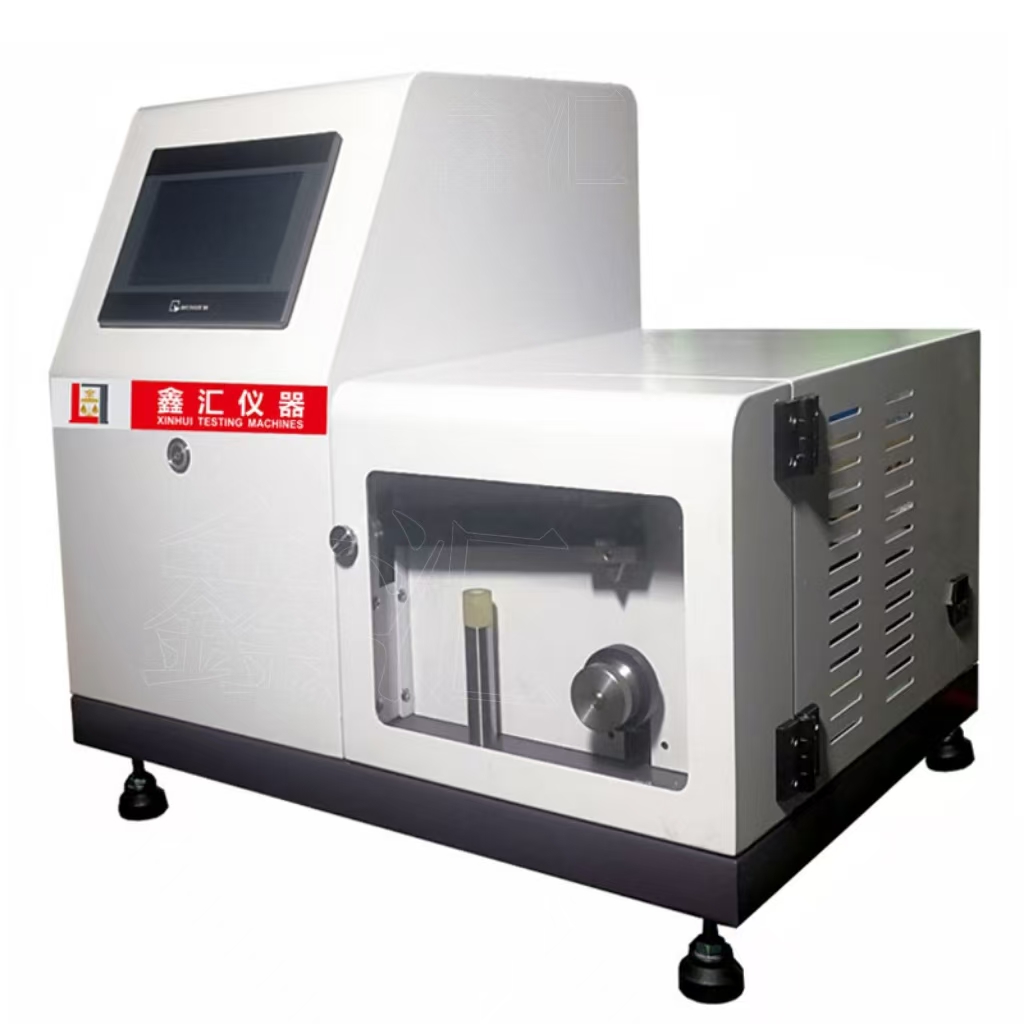

XH-6012-Q橡胶动态耐切割试验机

本机适用于硫化橡胶等耐切割性能的测试。用于模拟轮胎在实际使用中受到坚硬物质冲击后对轮胎性能的影响。本机是将切刀在一定倾斜角度和一定负荷下对试样进行切割。 This machine is suitable for testing the cut resistance of vulcanized rubber and similar materials. It simulates the impact of hard objects on tire performance during actual use. The machine cuts the specimen with a blade at a specific tilt angle and under a specified load.

详细描述

主要规格参数


控制方式Control MethodPLC+HMI
荷重Load475g±10g
切刀冲击频率Cutter Impact Frequency0.25~2HZ
切刀冲程Cutting stroke48±1mm
试样转速Specimen rotating speed100~1000rpm
切刀Cutter

刀尖夹角60° Blade tip angle 60°

刀口宽度6.3mm blade edge width 6.3 mm

测试时间Test Time0~999min(adjustable)
外形尺寸Dimensions(W*H*D)mm600x450x520
电源Power Supply1∮,AC220V,50HZ


产品规格如有变更,恕不另行告知,请以实际报价为准!
