橡胶制品,轮胎试验机系列

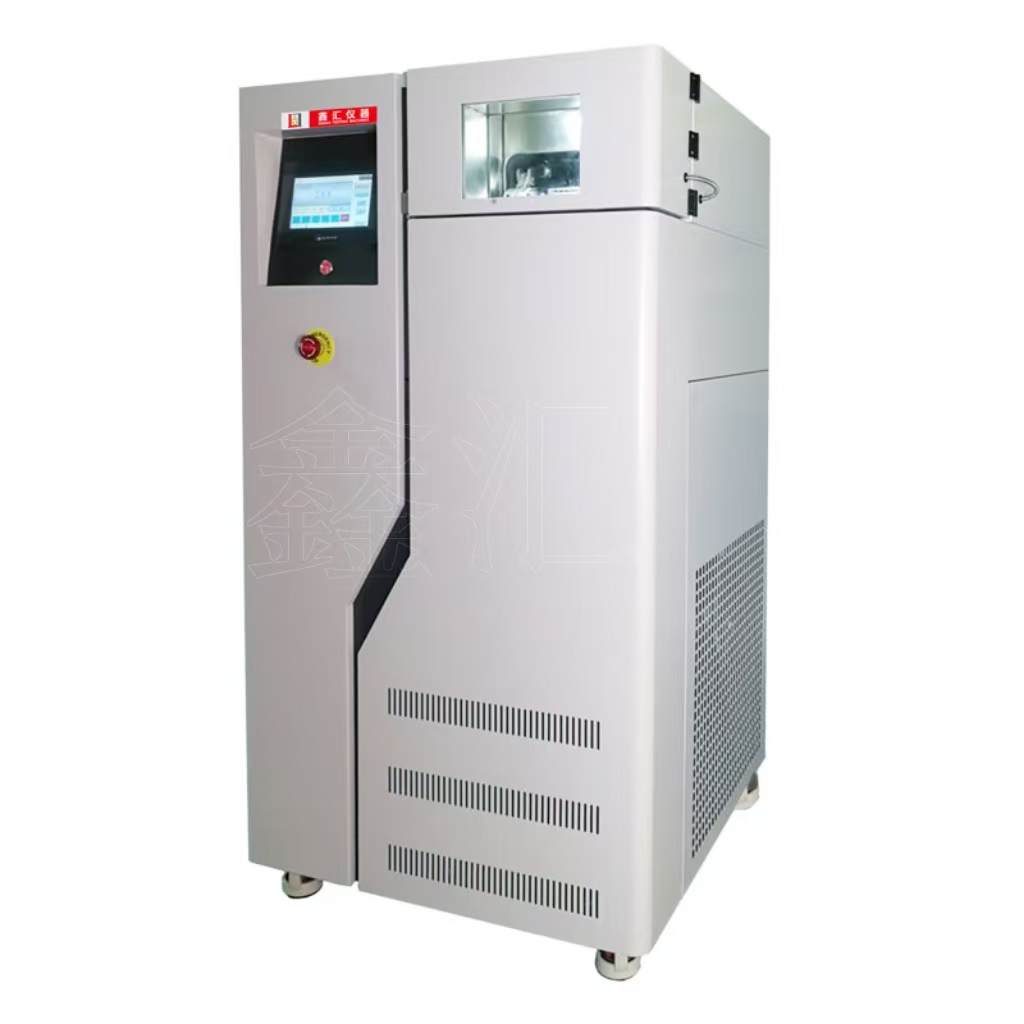

XH-NDA 低温脆化试验机

本机适用于塑胶或硫化橡胶在规定条件下,经受冲击时不出现脆性破坏的最低温度的试验。试样在规定的低温条件下经受冲击,不产生破坏的最低温度。 This machine is suitable for plastic or vulcanized rubber under the conditions of regulation Test for the lowest temperature ofbrittle failure.The sample is subjected to shock at low temperature and no minimum temperature.

详细描述

主要规格参数


控制方式controllerHMI+PLC
制冷方式Cooling method压缩机Compressor
测试环境Temp. range常温~-70℃ Ambient to -70
温度精度Temp. display resolution±0.1℃
冲击速度Striking speed2±0.2 m/s
冲击头半径Radius of striker edgeR1.6mm±0.1mm
试验槽Test tank (W×D×H)59×26×16 cm
制冷介质Cooling Medium酒精 Alcohol
测试模式test mode全自动 automatic
体 积Dimensions(WxDxH)
800x850x1450mm
电 源Power3∮, 380V(或指定or specified)
参考标准STANDARDS

GB/T 15256-2014、ISO 812-2017、GB/T 5470-2008、ISO 974-2000、ASTM D746-2014、JIS K6261-2006


产品规格如有变更,恕不另行告知,请以实际报价为准!
