纺织、皮革试验机系列
1 / 2

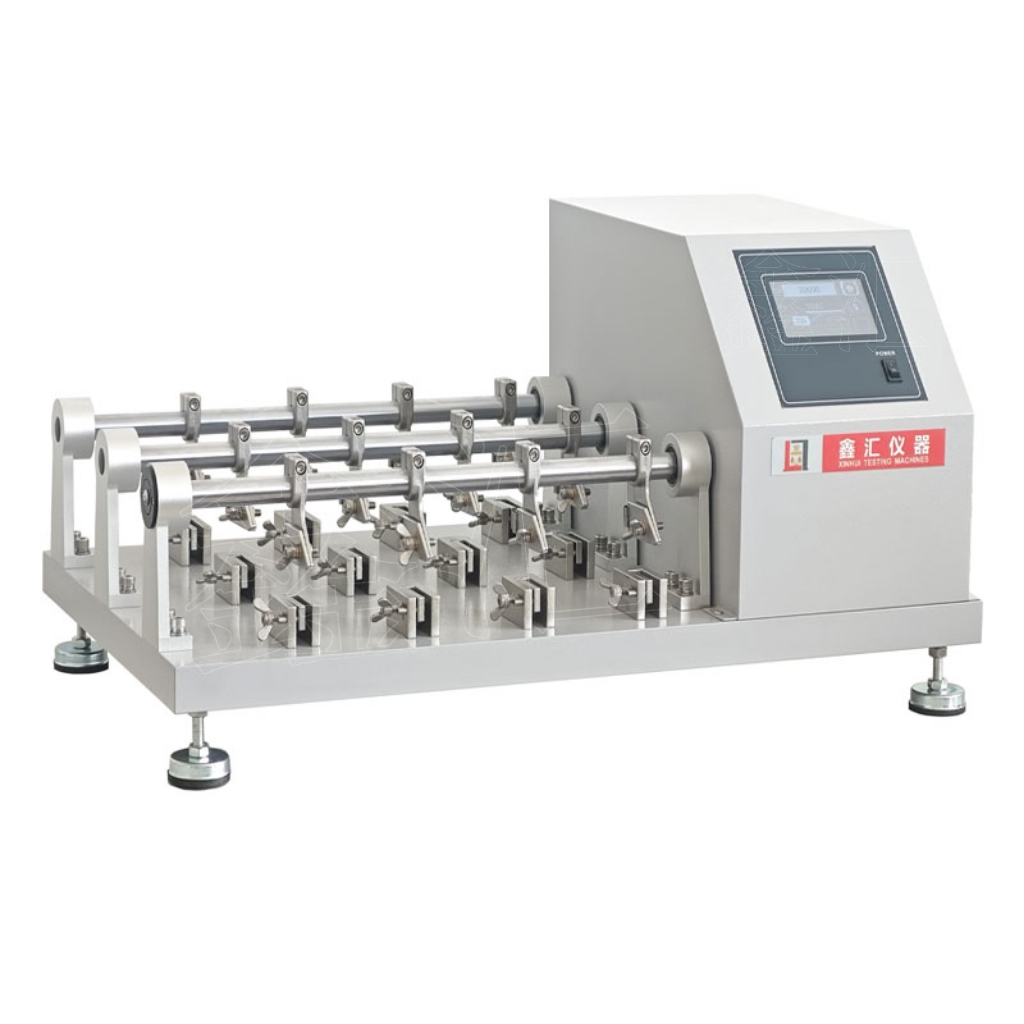

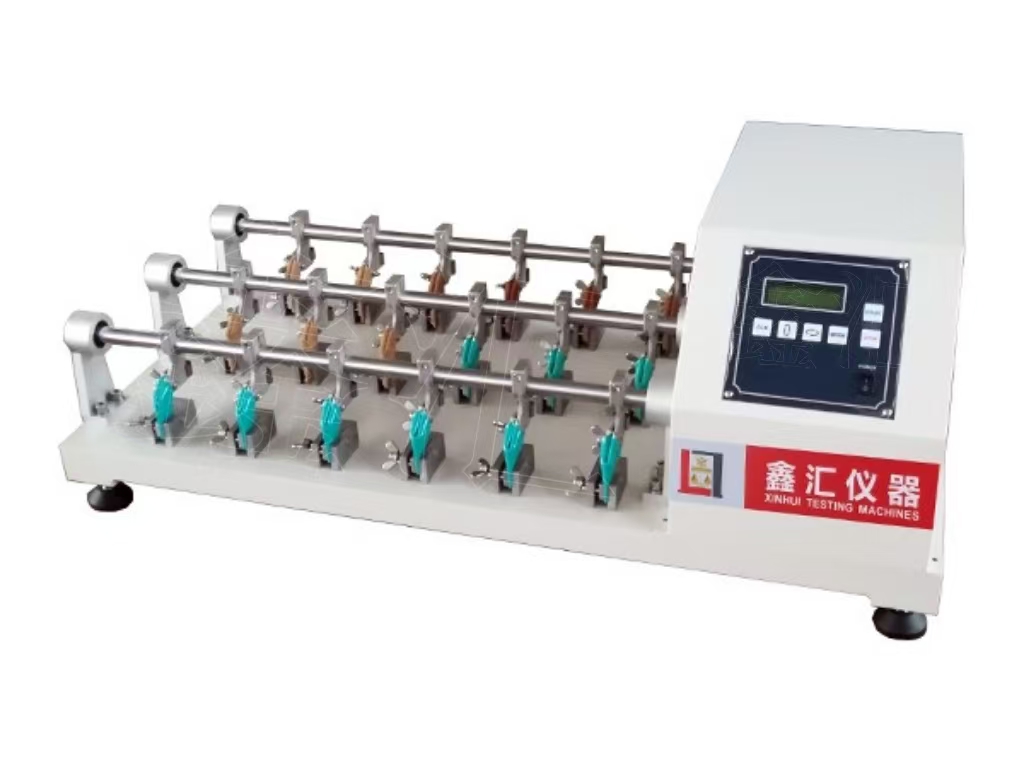

XH-2071-BN皮革耐挠性试验机

本机适用于皮革、布类等材料之来回耐挠性试验。通过试样经一定次数曲折后的损坏程度,来测定其耐挠性。具有记忆功能;可同时测试多组试件,亦可根据客户要求设计测试组数。 This machine is designed for determining the resistance of materials such as leather, fabric to flex.The flexing resistance is determined after the specimen is flexed for a specified time. Ithas a memory function and can test more than one specimen ata time. Custom-made number of specimens for test is also available.

详细描述

主要规格参数



夹具Grips(选购optional

(A)6 组 6 sets

(B)12 组 12 sets

试片Specimen
70×45mm
速度Speed
100±5次/min
角度Angle
22.5°±0.5
计数器Counter
HMI, 0~999,999
体积 Dimension (W×D×H)cm
78×45×36
重量Weight
78 kg
电源Power
1∮, AC 220V, 3A


产品规格如有更变,恕不另行告之,请以实际报价为准!
