环境试验机系列
1 / 2

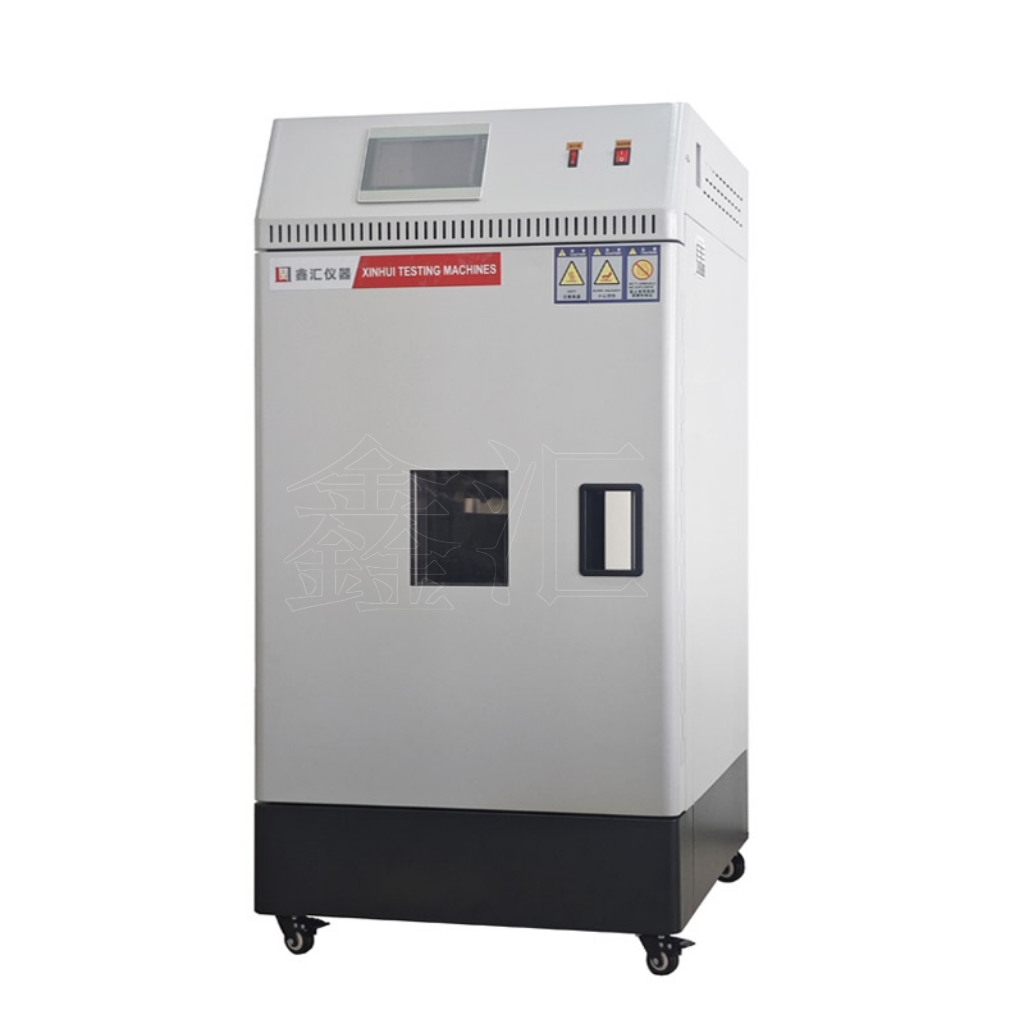

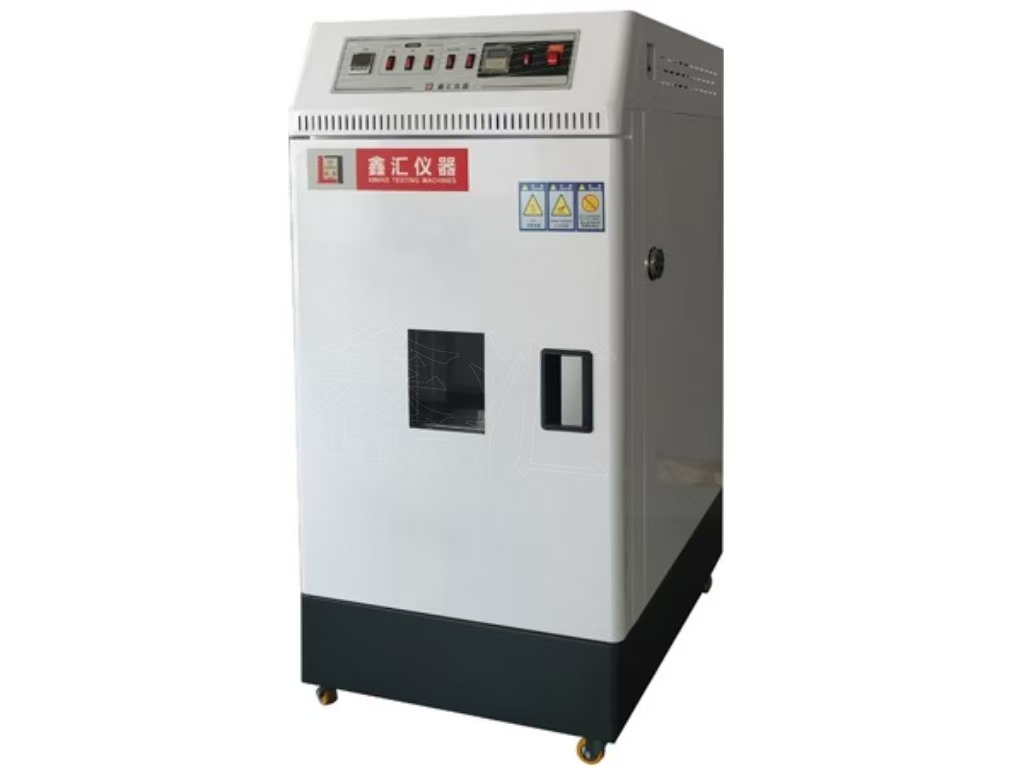

XH-AG-NMH 新款老化试验箱

本机用于测试塑料类、橡胶类、皮类、布类材料受热前与受热后变化特性。经规定温度及时间均匀受热后,观测试样老化前后之耐黄、开胶、收缩、伸长、残余率等性能,从而判定其老化特性。 This machine is used for testing the changes in characteristics of plastics, rubber, leather, abrics before and after heating. The specimen is checked to see its discoloration, split, shrinkage, extension, residual ratio, etc. so as to determine the aging haracteristics.

详细描述

主要规格参数


控制器controllerHMI+PLC
温度范围Temp.range

常温 +15~200

 Room temp.+15℃~200℃(300选配)

温度波动度Temp. fluctuation
±0.5℃
温度偏差Temp.deviation

± 1.0 %

(100℃以内小于1℃,100-200℃小于2℃,200-300℃小于3℃)

温度均匀度Temp. uniformity
±1.0%F.S
定时器Timer
触摸屏0~9999 (H, M)可设定adjustalbe
回转盘速度Turntable speed
5~10rpm
控温精度 Temp. precision
±1.0℃
内箱Interior (W×D×H)
40×40×45 cm
体积Dimension (W×D×H)
65×75×135 cm
重量Weight (approx.)
150 kg
电源 Power
1∮, AC 220V, 50Hz, 3.5kW


产品规格如有更变,恕不另行告之,请以实际报价为准!
