制鞋试验机系列

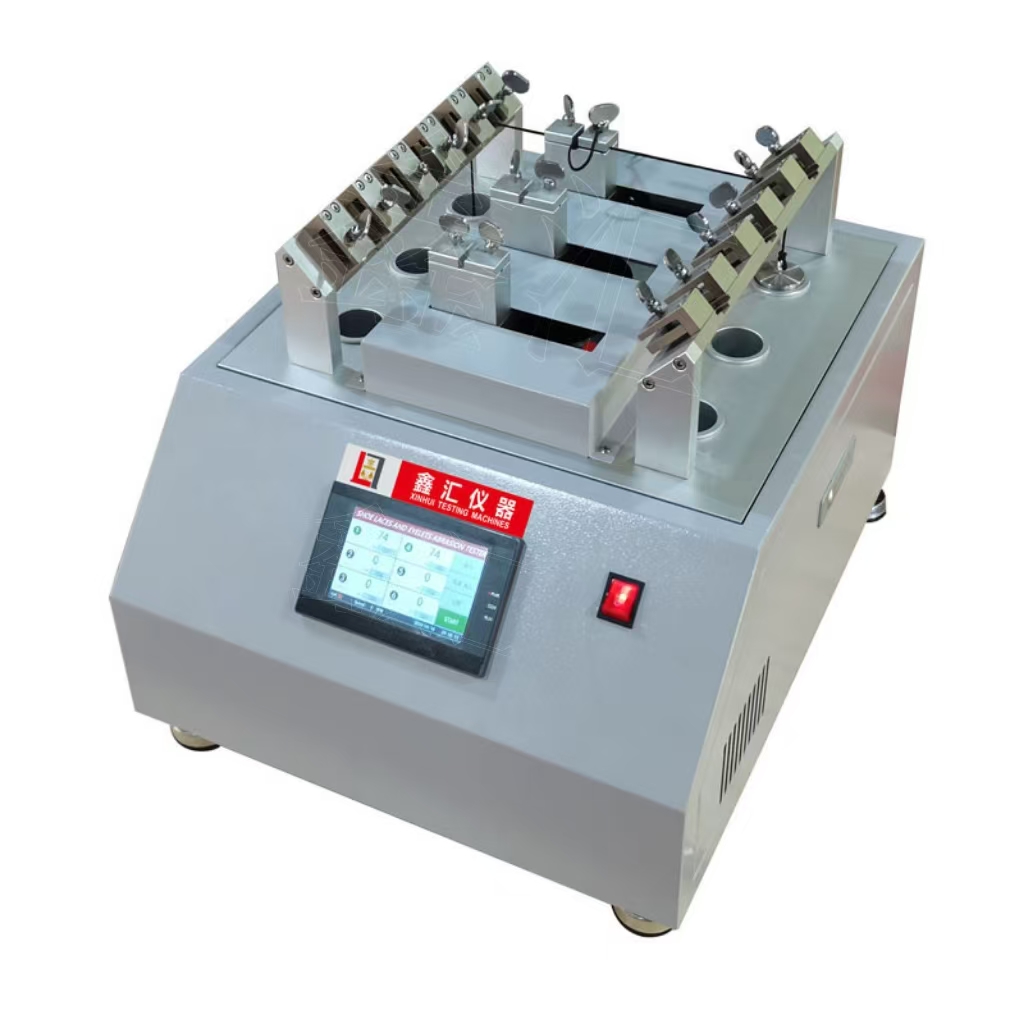

XH-2012-E1H 鞋带与鞋眼扣耐磨试验机

本机适用于做所有鞋带耐磨性能试验。通过活动夹持器的往复运动,使相互水平交叉的两根鞋带相互摩擦,以检测其耐磨性能。可同时分别测试4组试样,互不干扰。 This machine is designed for the resistance of all shoelaces toabrasion.Two shoelaces are horizontally crossed in a moveableclamp, rubbing against each other, so as to determine their abrasiveresistance.4 sets of specimens can be tested once.

详细描述

主要规格参数


控制方式Control Method
HMI+PLC
行程Stroke
76±2mm
测试速度Test Speed
100±5cpm
夹具数量Test Quantity
6组式
Load(weight)
455g±5g x6pcs
计数器 Counter
HMI 0~99,999,999可设定
标准鞋眼Standard eyelet

(1)黄铜制,内径4.5mm

(2)纤维板 Ø5.0±0.2mm(选配)

重量 Weight (approx.)
60 kg
体积Dimension (W*D*H)(约)cm
55* 58*41
电源Power
1∮ AC 220V(依国别或指定or specify


产品规格如有变更,恕不另行告知,请以实际报价为准!
