塑料、塑胶、胶带试验机系列

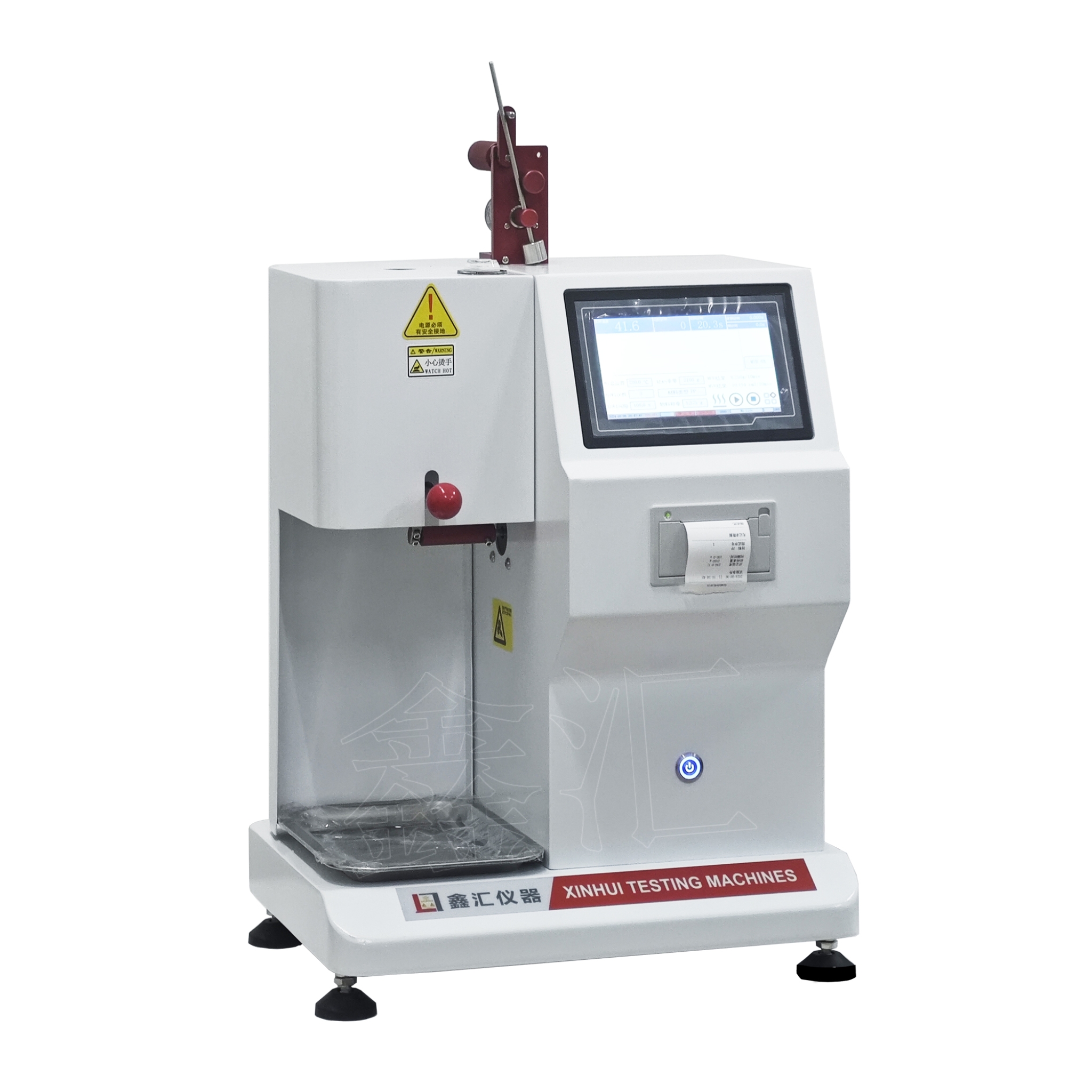

XH-MIBH 塑胶熔融指数测定仪

本测试定方法是在规定温度 、荷重及活塞于柱桶内位置等条件下,以计时量测方法测定熔融塑料挤过依规定长度与直径及细孔模之速率,用来判别聚合物流率之挤出速率。 This tester is used to measure the rateof extrusion of molten resins through a die of specified length and diameter under prescribed conditions of tem-perature, load and piston position in the cylinder formeasuring the flow rates of polymer in producing process.

详细描述

主要规格参数


温度控制 Temp. control
HMI+PLC
常温 Room temp.RT+10°C~350°C(450°C可选)
口模直径Φ2.095±0.005mm(半口模1.05mm+0.005选配)
料筒内径9.550±0.025mm
测试范围
0.1-150g/10min
切料计时范围1-999S可调
精度Accuracy±0.1°C(含超温保护)

适用材料范围

Folw rate of applicable materials

0.15~50g/10min
体积Dimerision (W×D×H)37×51×56 cm
重量Weight42kg(不含砝码Without weights)
电源Power1∮, AC220V, 50/60Hz, 5A


产品规格如有变更,恕不另行告知,请以实际报价为准!
