橡胶制品,轮胎试验机系列
1 / 2

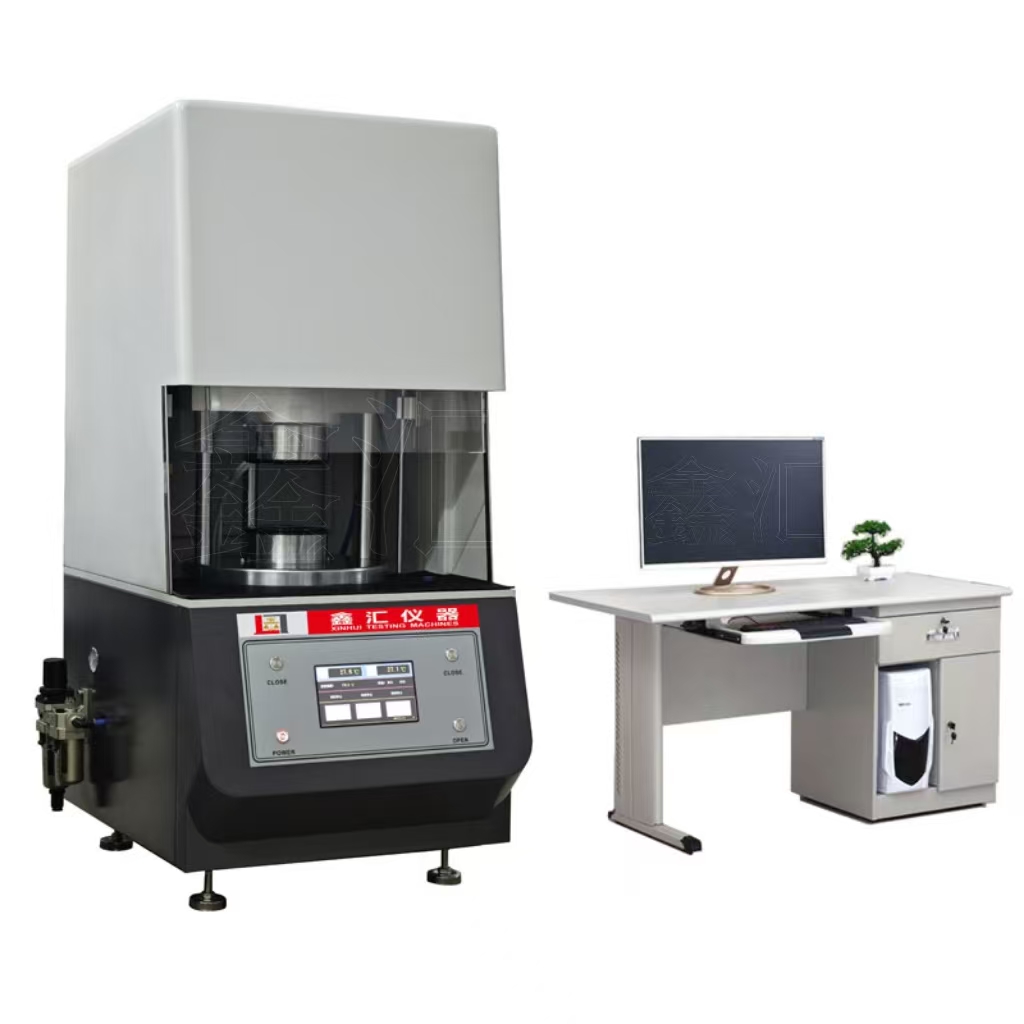

XH-MDA 无转子硫变仪

硫化仪能连续、直观地描绘出整个硫化过程的粘性、弹性、滞后损失和硫化速率曲线,从而获得胶料硫化过程中的某些主要参数。如扭矩、诱导时间(焦烧时间)、硫化速度及适宜硫化时间,具有连续、快速、精确和方便等优点。 The rheometer can simultaneously determine the iscosity, elasticity, hysteresis loss and curing rate during the ulcanization process of the rubber compound. Important vulcanization characteristics such as torque, cure rate index and curing time can be measured.

详细描述

主要技术参数


振动频率 Oscillation frequency100cpm(1.66HZ)
振动角度 Oscillation amplitude±0.5℃ ,±1℃ ,±2℃ (标配角1度)
温度控制 Temp. control计算机连线操控,PID.SSR控制
温度范围 Temp. range常温~200℃
温度精度 Temp. accuracy±0.1℃
回温指标 Temp. recovery rate<60秒
升温速度 Heating up speed30℃~180℃小于8分钟


产品规格如有更变,恕不另行告之,请以实际报价为准!

点击数:631    更新时间:2019-09-04 15:59:28
